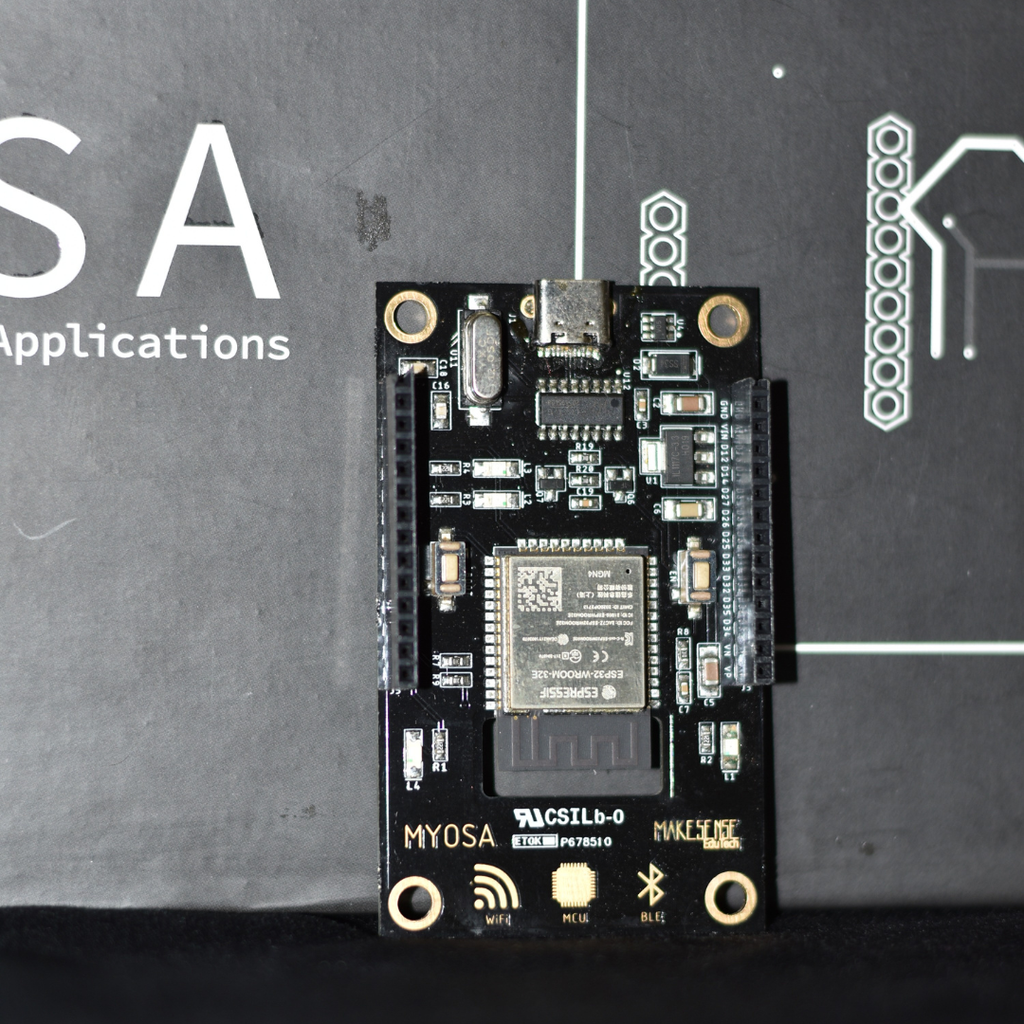

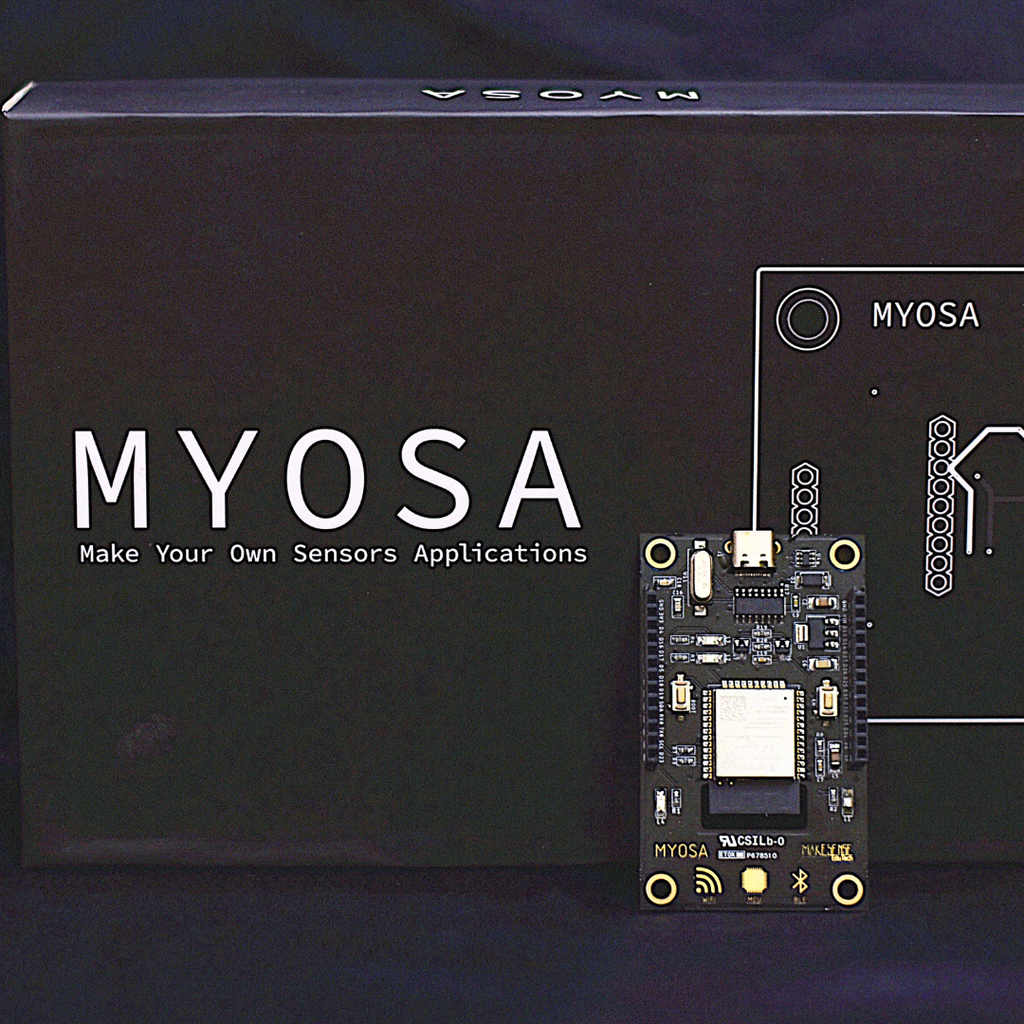

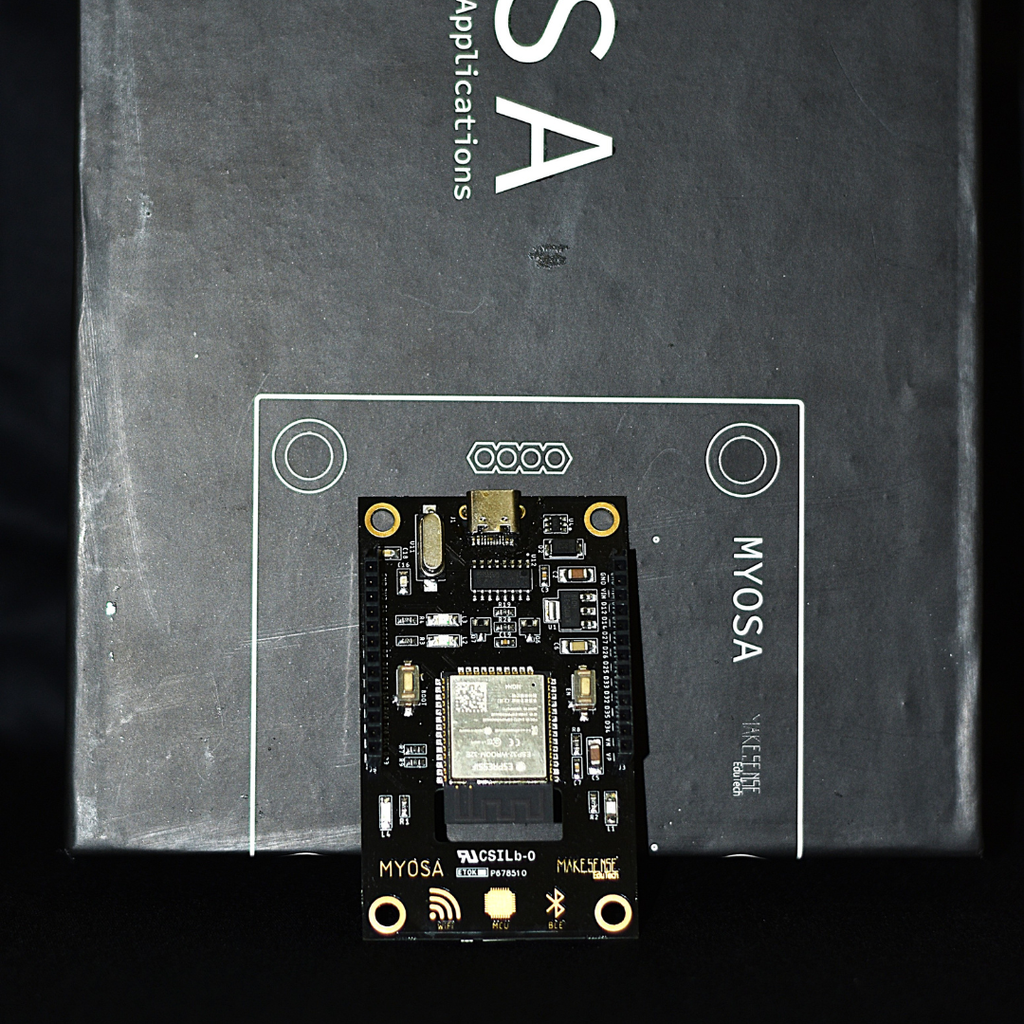

MYOSA Motherboard - ESP32-Based IoT Development Platform

The MYOSA Motherboard is a versatile ESP32-based development platform designed for IoT applications, prototyping, and educational projects. Featuring robust wireless connectivity, comprehensive protection circuits, and seamless sensor integration via I2C, it's the perfect solution for makers, students, and embedded system developers.

Technical Specifications

Description

Empower Your IoT Projects with MYOSA: Build, Learn, and Innovate

Transform your ideas into reality with a powerful, easy-to-use development platform designed for education and innovation.

The MYOSA Motherboard is an ESP32-powered development platform engineered for makers, students, and IoT enthusiasts. Built around the versatile ESP32 WROOM-32E module, this board combines powerful dual-core processing with comprehensive wireless connectivity, making it ideal for sensor-based applications, automation projects, and embedded system learning. Whether you're building a smart home device, environmental monitoring system, or interactive prototype, MYOSA delivers the reliability and flexibility you need.

Key Features for Maximum Innovation

Superior Processing Power

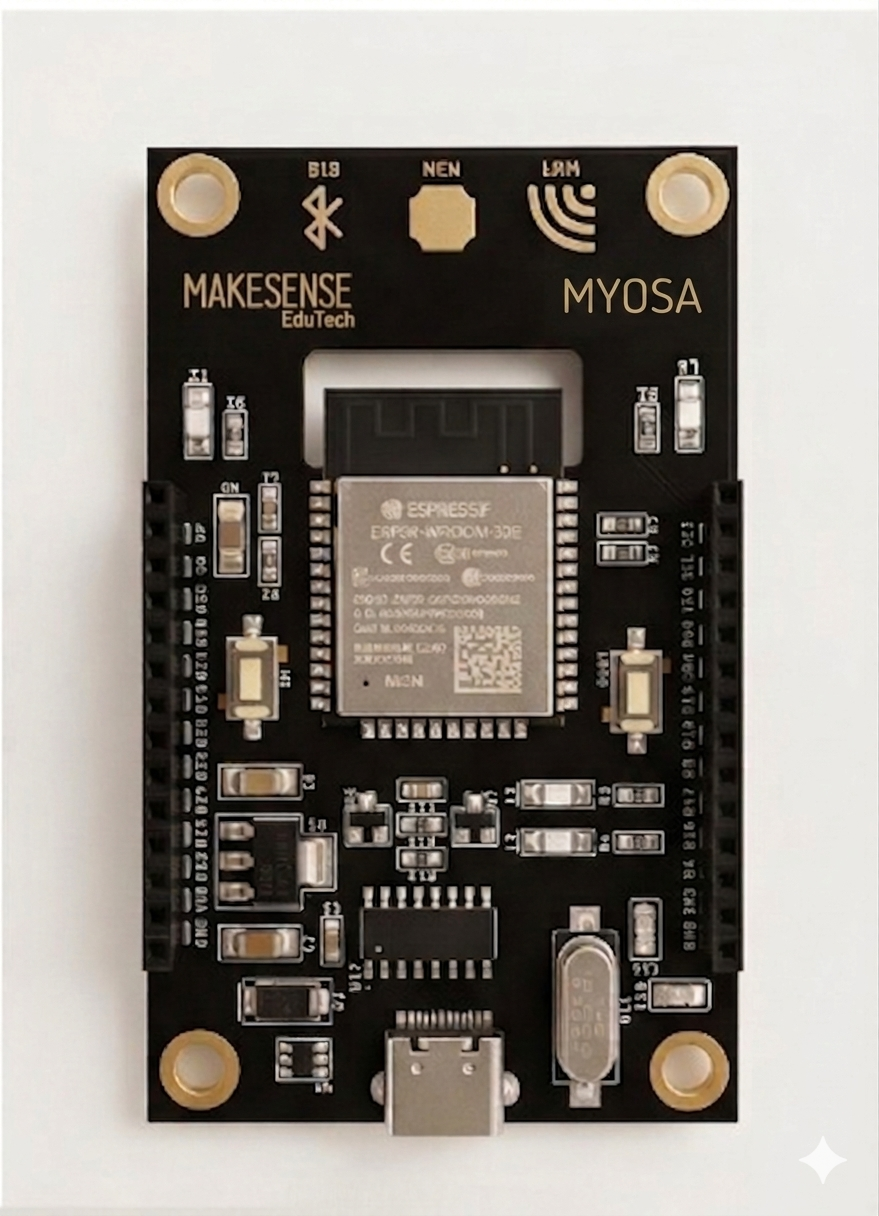

• ESP32 WROOM-32E Module: Dual-core Xtensa® LX6 processor running at up to 240 MHz

• Generous Memory: 512KB SRAM and 4MB Flash for complex applications

• Efficient Architecture: Handles multiple tasks simultaneously with dual-core capability

Comprehensive Wireless Connectivity

• Wi-Fi 802.11 b/g/n: Seamless integration with wireless networks for IoT applications

• Bluetooth v4.2 BR/EDR and BLE: Support for both Classic Bluetooth and Bluetooth Low Energy

• Dual Protocol Support: Connect to mobile apps, cloud services, and other smart devices simultaneously

Developer-Friendly Design

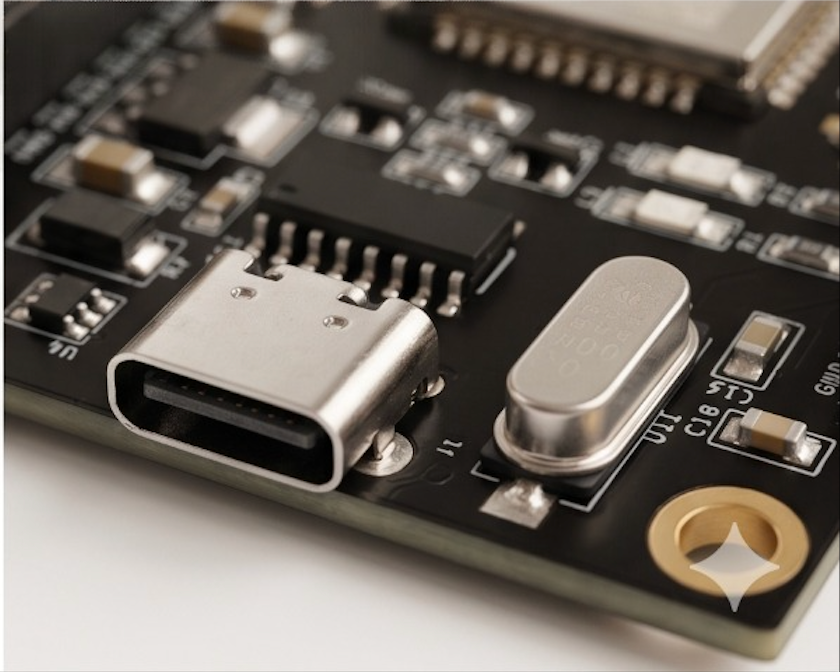

• USB-C Interface: Modern, reversible connector for code uploading and power supply

• Visual Feedback: TX/RX LEDs indicate data transmission during code uploads

• Programmable LED: Blue LED at GPIO2 for debugging and status indication

• Arduino IDE Compatible: Easy programming with familiar development environment

Robust Protection Features

• Reverse Polarity Protection: Diode-based circuit prevents damage from incorrect power connections

• ESD Protection: Safeguards sensitive components from electrostatic discharge

• Regulated Power Supply: Stable 3.3V operation ensures reliable sensor performance

Versatile I/O and Connectivity

• Dedicated I2C Port: Simplified wiring for sensors, OLED displays, and actuators

• 12+ GPIO Pins: Accessible via female Bergstrip headers for easy expansion

• Multiple Interfaces: I2C, SPI, and UART support for diverse peripheral connections

• Dual Voltage Output: Both 3.3V and 5V available via header pins

User-Friendly Controls

• Reset Button: Quickly reboot the ESP32 without disconnecting power

• Boot Button: Enter firmware flashing mode for bootloader operations

• Power Indicator: 3.3V LED confirms stable power supply

Open-Source Ecosystem

• Complete Documentation: Comprehensive wiki with hardware specs and code examples

• MYOSA Libraries: Purpose-built Arduino libraries for seamless sensor integration

• Educational Focus: Designed for learning embedded systems and IoT development

• Community Support: Active developer community and extensive tutorials

Real-World Applications

IoT and Smart Systems

Perfect for creating connected devices, smart home automation, environmental monitoring stations, and wireless sensor networks with Wi-Fi and Bluetooth connectivity.

Educational Projects

Ideal learning platform for students and educators exploring embedded systems, sensor interfacing, wireless communication, and IoT application development.

Rapid Prototyping

Quickly test and develop proof-of-concept designs with easy GPIO access, multiple communication protocols, and comprehensive protection circuits.

Interactive Applications

Build responsive systems with real-time data acquisition, wireless data transmission via BLE, and seamless integration with mobile applications.

Resources

• ESP32 Datasheet - Complete technical specifications

• Getting Started Guide - Step-by-step setup and usage

• MYOSA Libraries - Arduino libraries for MYOSA ecosystem

• Wiki Documentation - Comprehensive hardware and software guides
